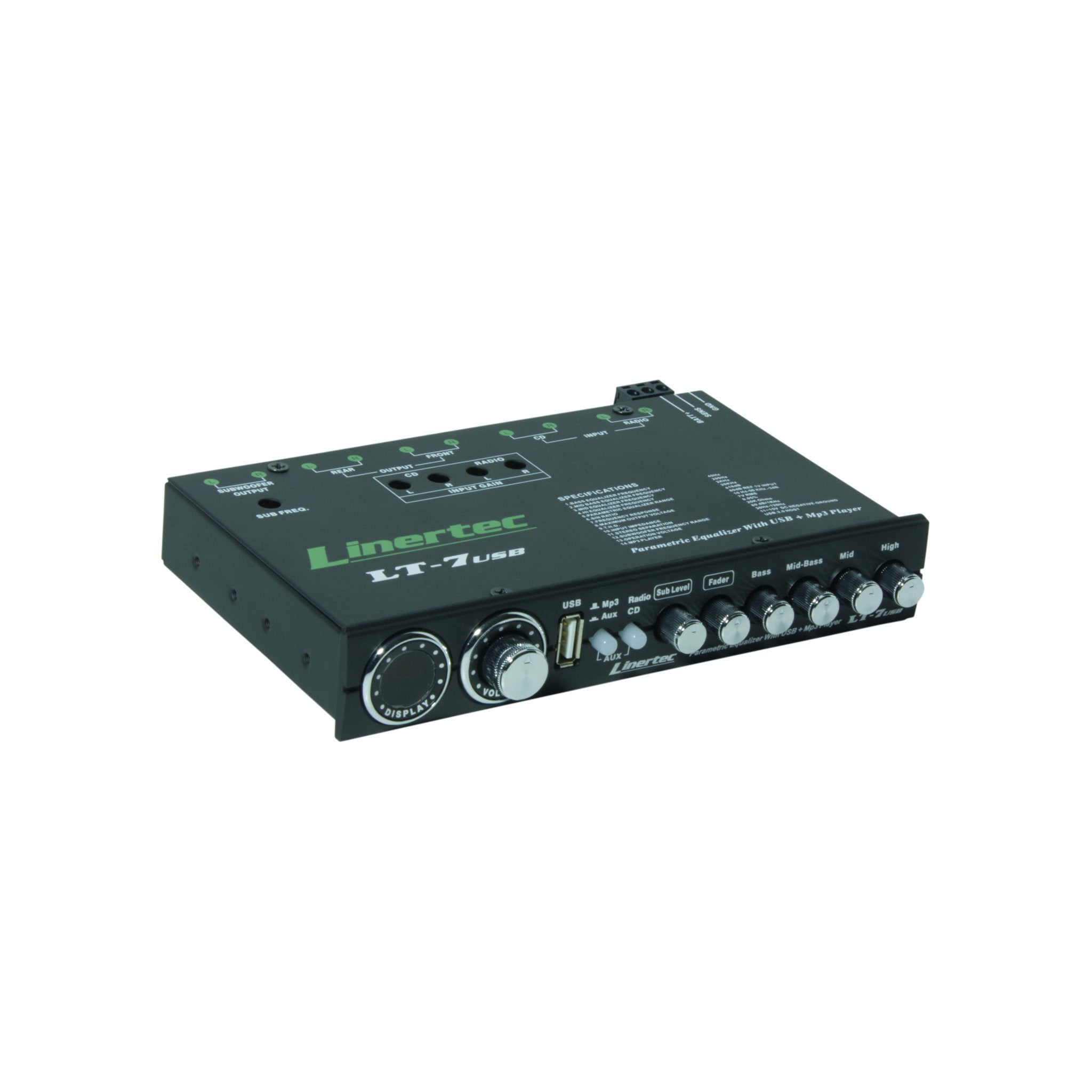

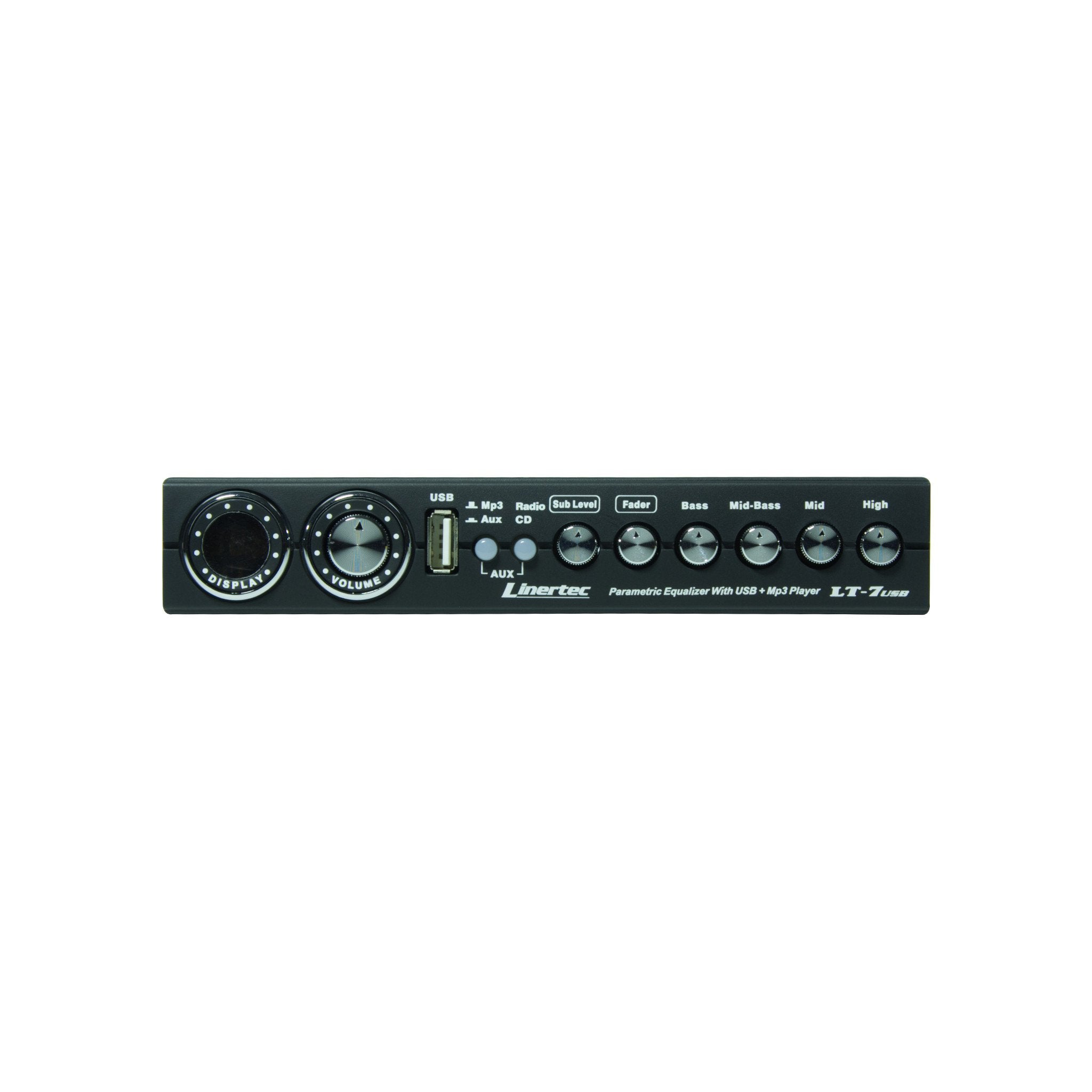

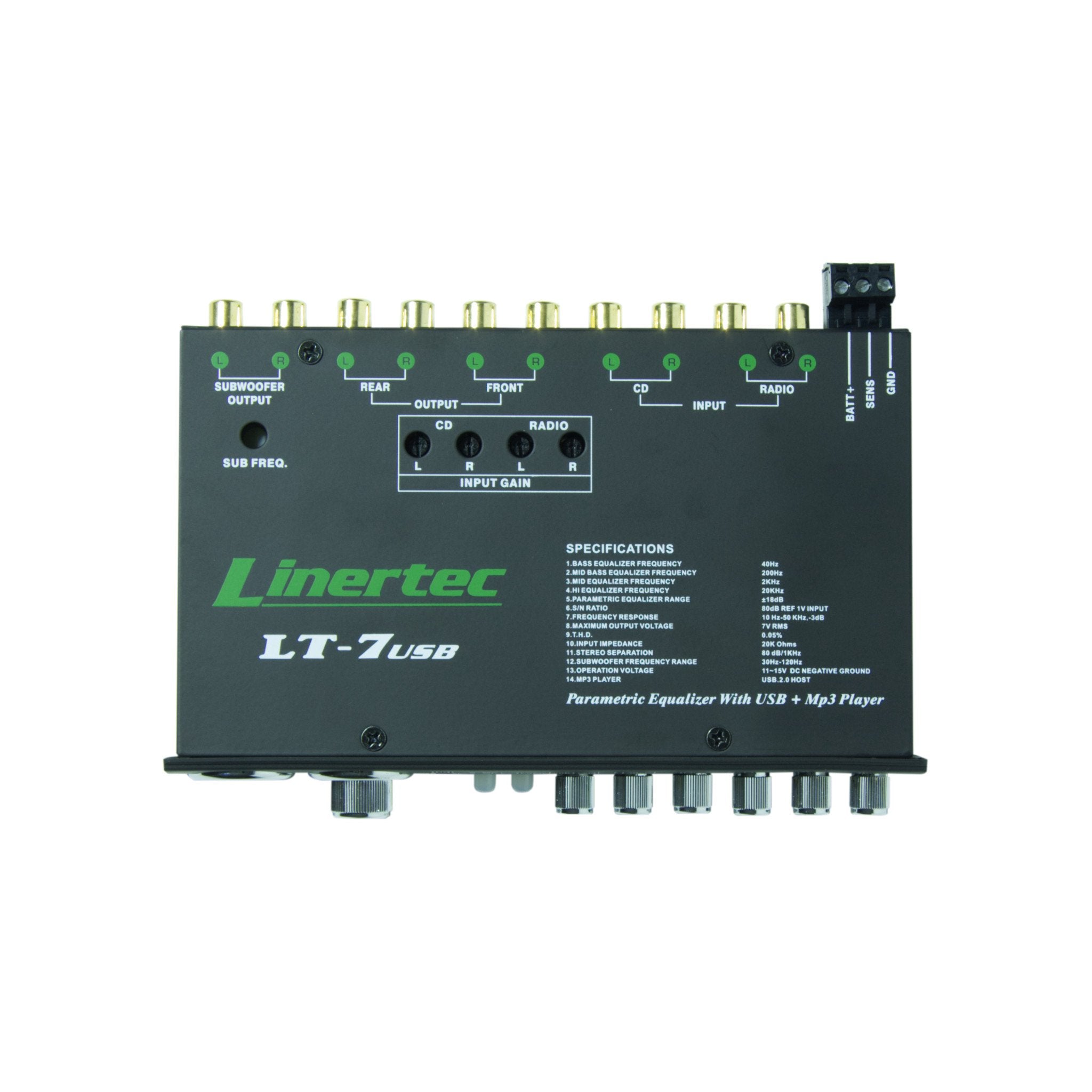

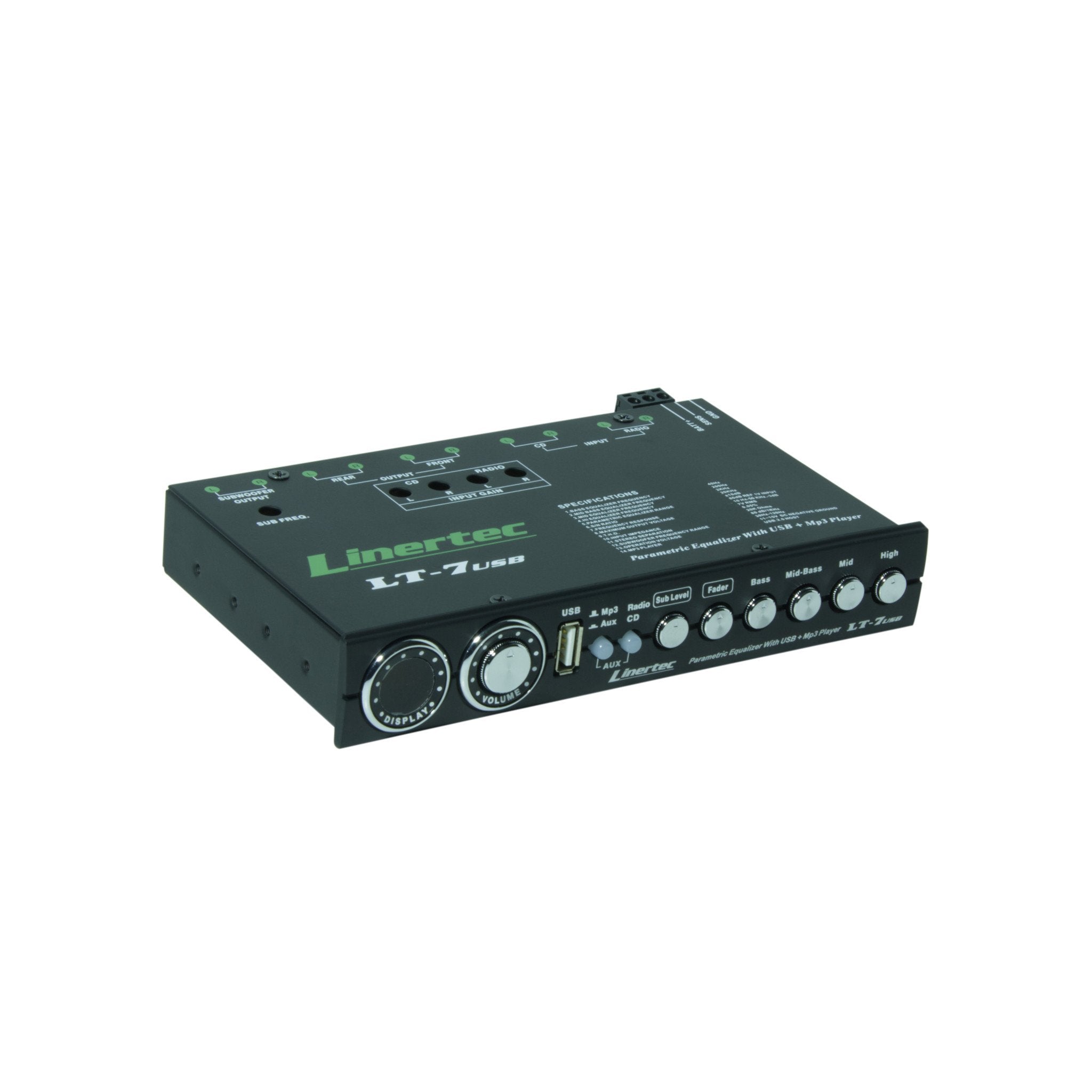

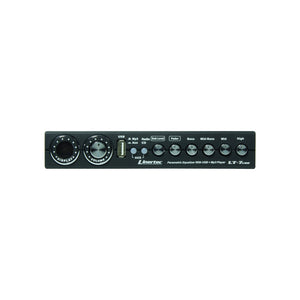

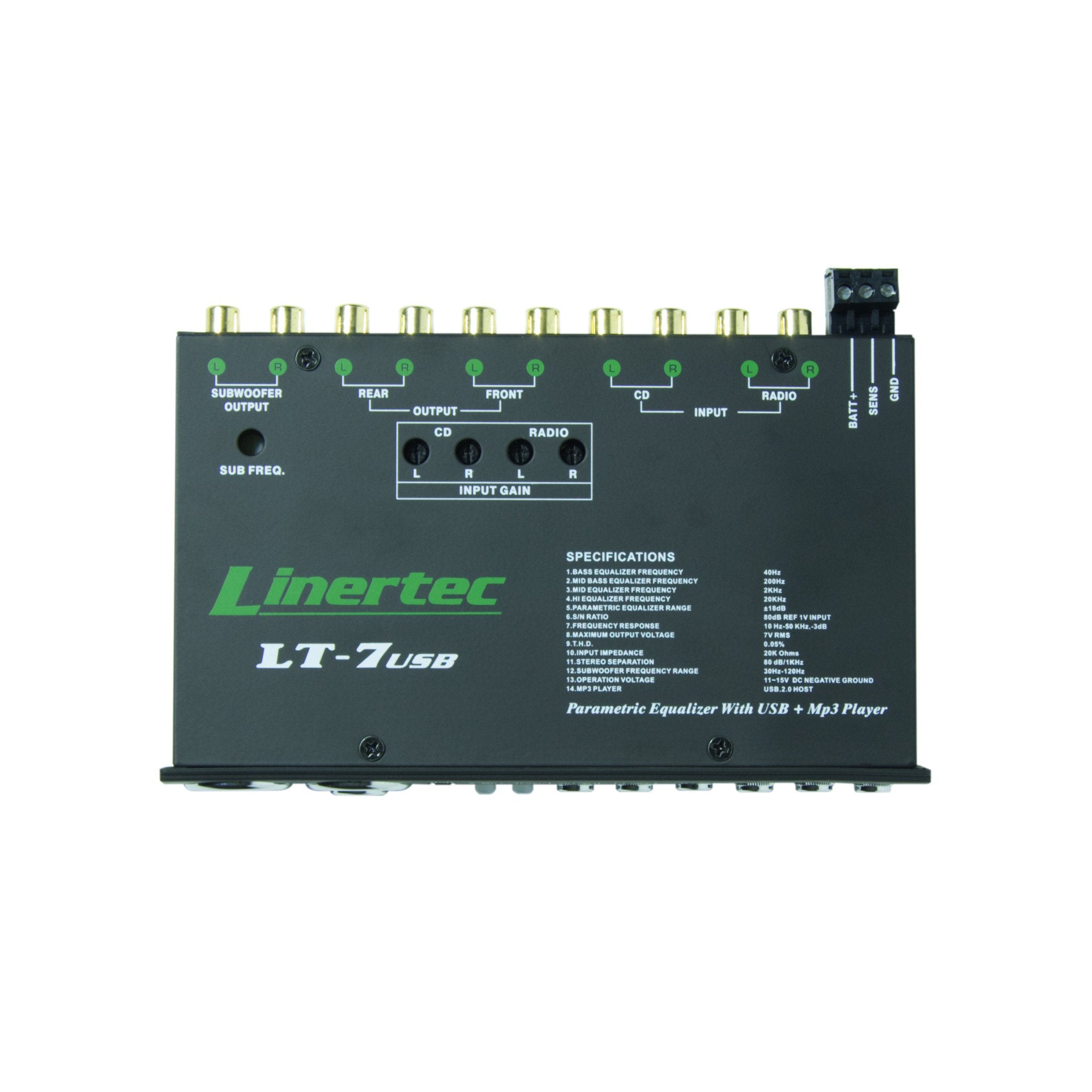

LT-7USB Pre-Amp Equalizer
LT-7USB Pre-Amp Equalizer
LT-7USB Pre-Amp Equalizer
LT-7USB Pre-Amp Equalizer
LT-7USB Pre-Amp Equalizer
LT-7USB Pre-Amp Equalizer
LT-7USB Pre-Amp Equalizer

LT-7USB Pre-Amp Equalizer

R 1,199.00
Tax included. Shipping calculated at checkout.

Features

  • Car audio active gain equalizer with adjustable input sensitivity.
  • Master volume control with up to 7V RMS of output.
  • Individual left and right sensitivity controls.
  • Four band parametric equalizer with 18dB boost/cut.
  • Specific bandwidth for each band plus high frequency shelving.
  • On-board 30V bipolar switching power power supply.
  • Subwoofer level control.
  • Subwoofer frequency control.

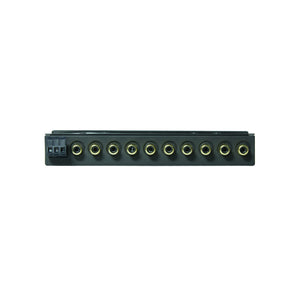

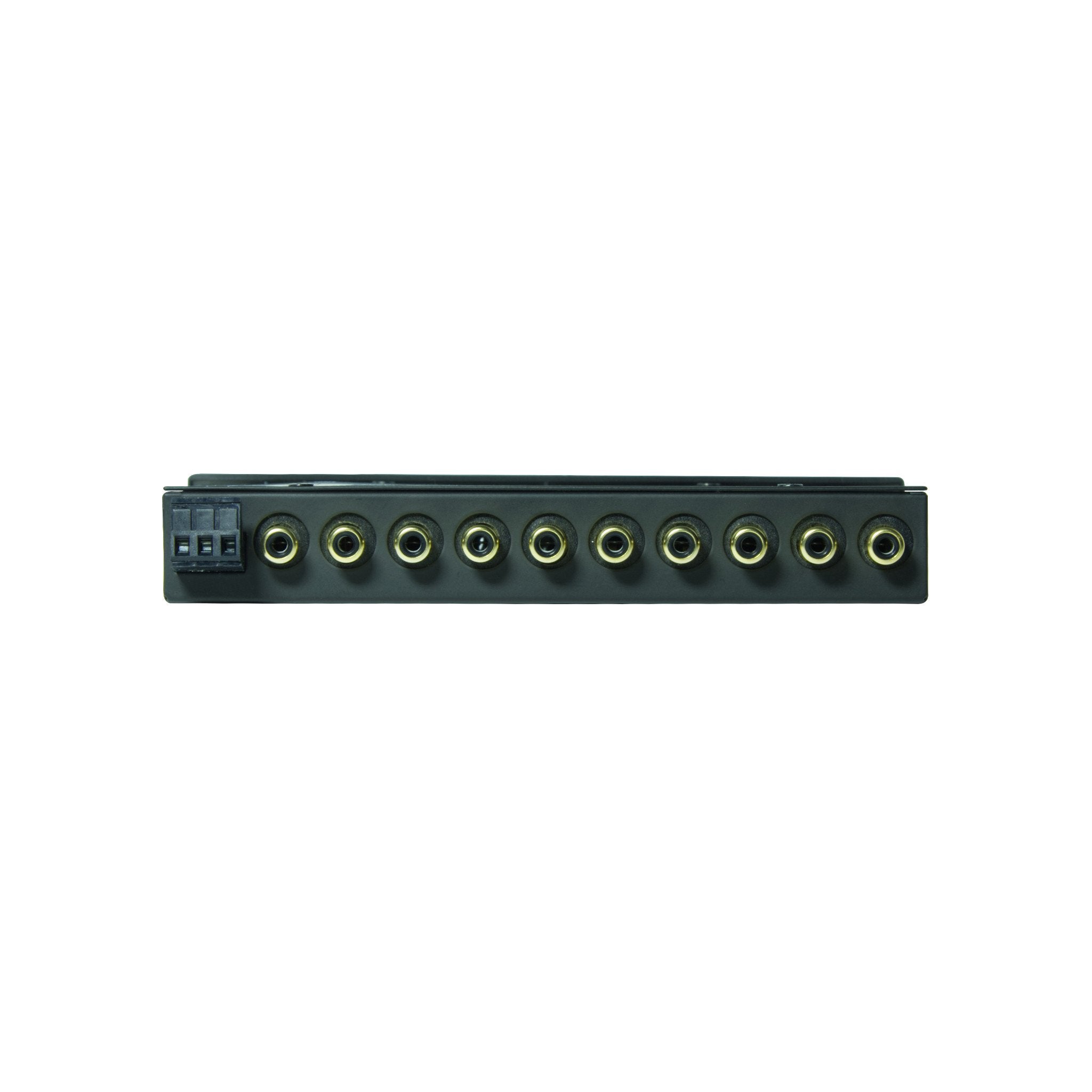

  • Gold plated RCA input/output connectors.
  • Dedicated switch for CD/Radio input.
  • Backlight illumination.
  • USB 2.0



Technical Specifications

Parameter Specification
Supply Voltage 11~15V DC neg. ground
Max Output Voltage 7V RMS
Parametric Equalizer Frequency
Bass Frequency 40Hz
Mid-bass Frequency 200Hz
Mid Frequency 2KHz
High Frequency 20KHz
Parametric Equalization Range ±18dB
Subwoofer Frequency 30Hz-120Hz
Frequency Response (-3dB) 10Hz~50KHz
Signal to Noise Ratio 80dB REF 1V INPUT
Input Impedance 20K Ohms
Channel Separation 80dB/1KHz
Total Harmonic Distortion 0.05%
USB Input USB 2.0
